We are proud to be certified Sony partner for more than 30 years and cooperating with Intel® for their RealSense™ Technology.
In this new webshop we have made available a few select products to help with your future endeavors.
The Spresense mainboard, camera board, and the extension board can be purchased as a package.

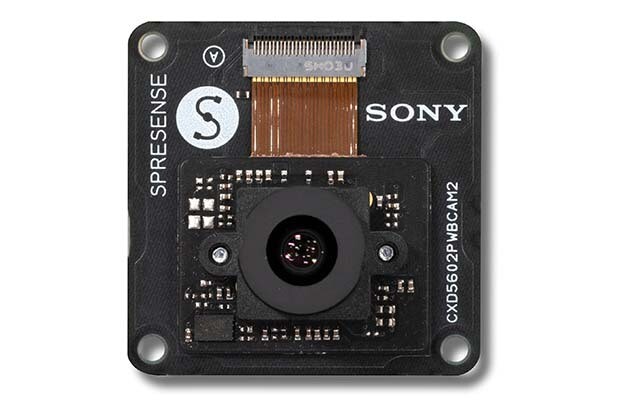

This compact HDR camera board has a Sony 1.84MP color CMOS sensor with a 1960 (H) x 960 (V) resolution, which is placed on a compact board measuring 28.0mm x 28.0mm. It can be directly plugged into the Spresense main board with a ribbon cable and outputs in Y/C, RGB and JPEG video formats over an 8-bit parallel data interface. Command and control are done through an I2C bus. This board includes a build in fixed focus lens that has a 50.3° FOV with an f/2.0 aperture and a built in IR-cut filter for more accurate color representation.

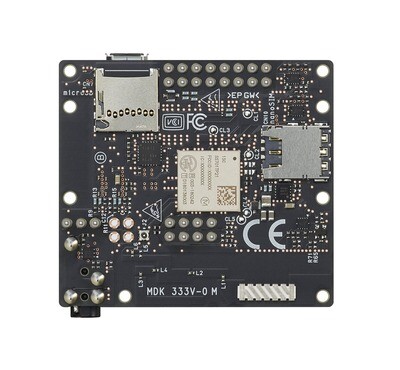

The Spresense LTE extension board adds LTE connectivity to the Spresense main board and carries an on-board antenna and a nanoSIM card holder. It also extends the interfaces of the Spresense main board with multiple mic inputs, headphone jack and microSD card slot. The Spresense main board and the Spresense LTE extension board are connected by a board-to-board connector. LTE Cat-M1, NB-IoT | On-board antenna | 3.5 mm headphone jack | MicroSD card slot | An extra USB port | 2 analog/4 digital microphone inputs
TRUPHONE is providing an LTE SIMCARD that has been tested to be compatible with Spresense LTE board. It is currently being made available for FREE during the introductory period of the Spresense LTE board.
Please note that the Safety Instruction manual is only printed in the following languages: English, French, Spanish, German and Italian.
This main board includes both the Sony CXD5247GF and the CXD5602GG processor chips and includes an on-board GPS chip antenna, a camera interface, USB based 0debug interface and a 26-pin extension connector.
Several add-ons can be made or purchased to support additional features like LTE, WiFi, Bluetooth BT/BTE and image sensors.
ARM Cortex-M4F x 6 Cores
|Max. Clock Frequency [MHz]||
|Flash Memory [MB]||
MB: GPIO, SPI, I2C, UART, PWM, I2S; EB: 3.3 V or 5 V digital I/O
2 analog / 4 digital microphone inputs
|External Memory Interface||
micro SD card slot
MB: GNSS: GPS, GLONASS | Analog Input: 2 ch (0.7 V range); EB: analog input 6 ch (5.0 V range)
Includes Spresense mainboard, LTE extension board and camera board (Sony, Parallel, 1.84 MP, 1920 x 960, CMOS, color, Sony, HDR, Night vision, Marco Shoot)
Looking for higher quantities? Contact us for a personal quote at firstname.lastname@example.org.
Since 1981, FRAMOS implements the best current and emerging imaging technologies to address specific customer requirements and applications. FRAMOS meets these requirements with advanced and proven imaging components from a global network of renowned partners and with FRAMOS IP.
More than 180 FRAMOS employees world-wide are passionate about the unlimited potential of imaging and help customers achieve the optimum results from every possible scenario. FRAMOS drives and ensures the entire product development journey from POC, through prototyping, to mass production. FRAMOS carefully selects imaging components, like image sensors, lenses, or various 3D technologies, and offers custom developments tailored to individual needs and time frames. FRAMOS listens and understands customer challenges. With innovative solutions FRAMOS ensures successful project outcomes and develops long-term customer relations.
The Spresense developer boards allow for the creation of various different applications by leveraging the many features offered by these products”, says our Category Manager, Darren Bessette. “This excellent suite of components enables developers to easily design and build Embedded Vision solutions. The high-quality boards come equipped with a great development environment allowing developers to create IoT applications in a very short time-to-market.
The Intel® RealSense™ Technology provides the necessary data so that machines can make situational decisions and enable these devices to interact with their environment. The camera’s stereo depth sensing gives machines a more realistic view of the world to navigate and map their environment – enabling “smart” devices. For drones, robots, VR, automotive, surveillance and 3D applications, Intel® RealSense™ products are perfect to take the fast lane to embedded 3D vision.
